Product description

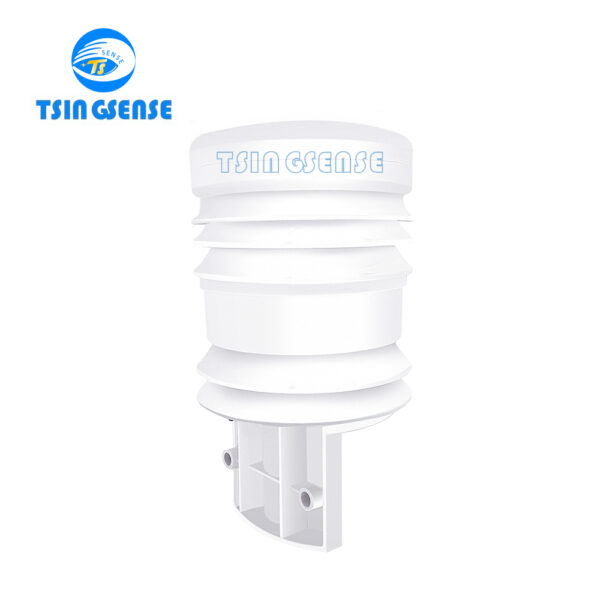

TS WDS300 integrated dust monitoring sensor is a miniature instrument mainly used in smart cities, smart lamp poles, and smart construction sites to monitor meteorological environmental elements.The meteorological elements that can be monitored include temperature, humidity, etc., and the environmental elements include PM2.5, PM10, noise, etc.The equipment system is modular in design, and users can flexibly configure it according to their needs. It can integrate solar power supply system, LED display screen and GPRS wireless transmission module, etc。
Class: Weather Sensors, Air Quality Sensor, Gas Sensor
Use: Meteorological monitoring
Installation type: Pole mounting
Description: Integrated weather sensors
Model: TS WDS300
Series: TS WDS series
Features: Ultrasonic, maintenance-free, RS485 output
Origin:Beijing, China
Principle: ultrasonic
Precision: 0.1
Reaction time: 1s
Working temperature: -40-80 °C
Humidity range: 0-100% RH
Dimensions: Length: 140mm, Width: 140mm, Height: 269mm
Weight: Approx. 0.9 kg
Output interface L: RS485, RS232, SDI12, 4-20mA, 0-5V optional
Power supply: 9-30VDC (solar and 220v power supply optional)
Power consumption: < 0.4 watts
Length: Default 3.5m (Extendable)
Applicable: Pole diameter is 60-75mm
Protocol: Also supports ASCII protocol and Modbus RTU protocol

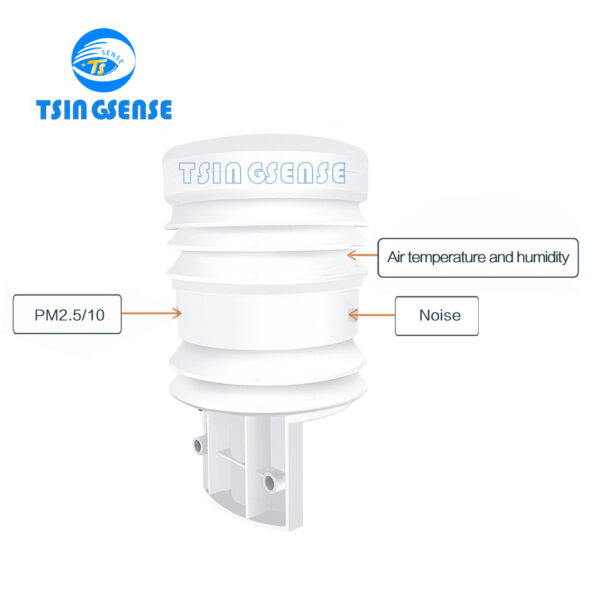

Technical Parameters
Parameter | Measuring range | Resolution | Accuracy | Measuring principle |
Air Temperature | -40℃～+60℃ | 0.1℃ | ±0.2℃ | Platinum resistance |
Air Humidity | 0%～100%Rh | 0.1%Rh | ±2%Rh | Capacitance |
Noise | 30-130dB | A weighting (simulating human ears) | ±1.5dB | Capacitive |
PM2.5/10 | 0~1000μg/m3 | 0.3μg/m3 | ±10μg/m3 or 15% | Laser scattering |
Reliability | Mean time between failures (MTBF), design value 85000h | Operating voltage | 9V～30VDC | |
Data Protocol | Support ASCII code and Modbus protocol | Operating temperature
| -40℃～+80℃ | |
Output | RS485, RS232, SDI12, 4-20mA, 0-5V optional | Operating humidity | 0～100%Rh | |
Size | 140mm*140mm*269mm | Weight | 0.8kg | |
Green transformation of construction sites
The construction site is located in the city center, surrounded by residential areas, schools and commercial places.The WDS306 dust monitoring sensor is used to monitor atmospheric temperature and humidity, air pressure, wind speed and direction, PM2.5/10, noise and other data. The construction period is expected to be two years, covering various building types such as residential and commercial complexes.In the early stage of construction, the surrounding environment was affected to a certain extent due to the dust problem. In order to improve the construction environment and reduce dust pollution, the construction party decided to introduce dust meteorological sensors and supporting monitoring systems。
Shijiazhuang Institute of Information Technology Assembly Smart Site Monitoring
Hebei Shijiazhuang Information Engineering Vocational College deployed environmental monitoring equipment during the construction phase to collect real-time data such as PM2.5/10, wind speed and direction, and noise, and linked it with the sprinkler system.When the PM concentration exceeds the standard, the fixed fog cannon, mobile fog cannon vehicle and tower crane spray device will automatically start, combined with the enclosure spray to form a “five-layer protection” system to control dust within the construction area。
